Optimise processing with precision weighing

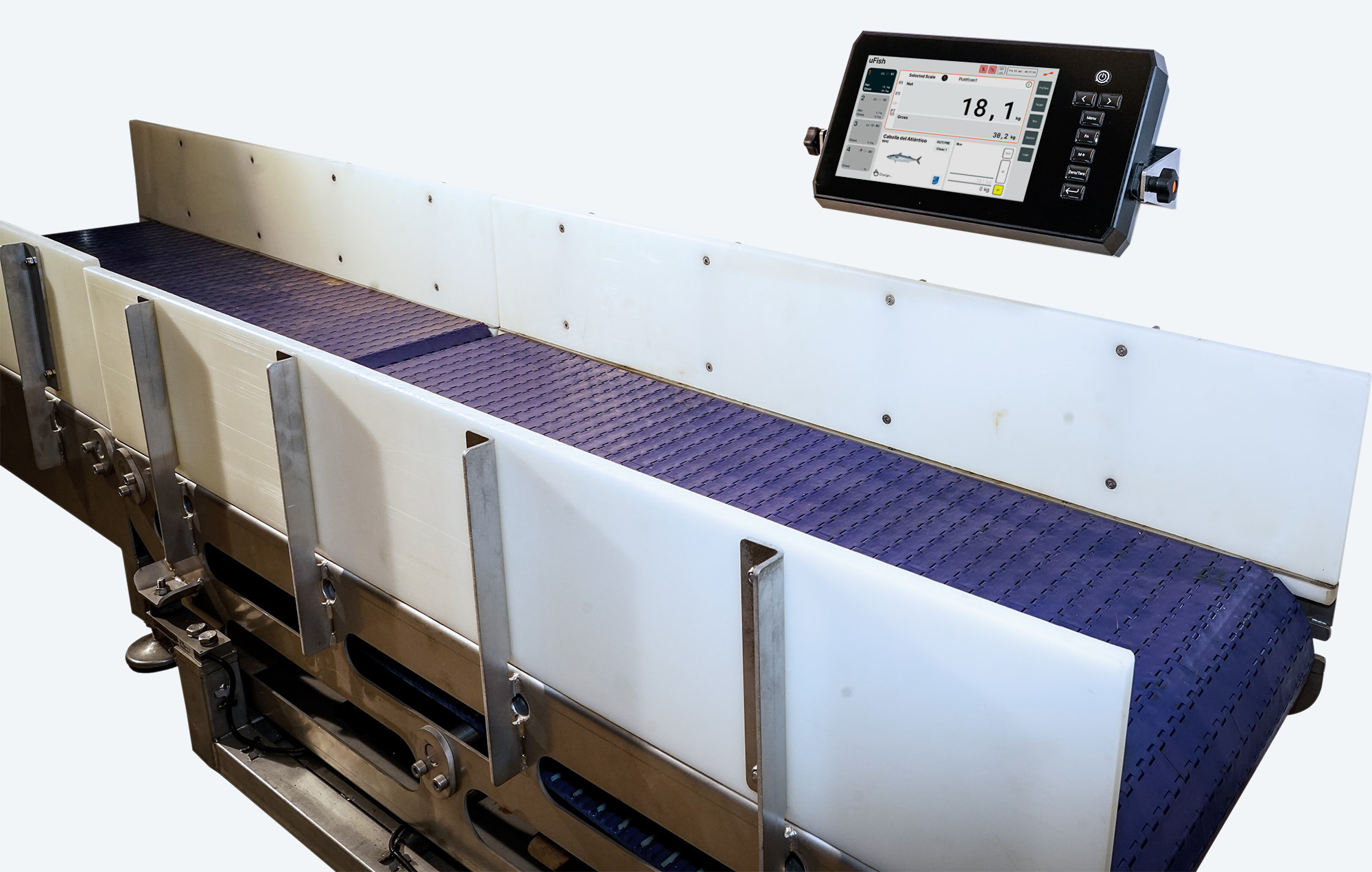

The u4000 Conveyor scale is engineered specifically for use in onboard fish processing lines on factory trawlers and conveyor belts, ensuring accurate and reliable weighing even in demanding marine environments. This scale supports multiple platform configurations and is enhanced by the uFish application, enabling varied, precise weighings for continuous product flow into batches, all managed with sophisticated grading and labeling.

Built for durability and compliance, the u4000 Conveyor scale seamlessly integrates with uBridge and optional uCloud software, supporting legal-for-trade operations and promoting robust, traceable, and efficient marine processing activities.

Key benefits

01 Tailored precision Customised 4-cell scales.
02 Unwavering stability Resistant to vibrations and electrical disturbances.
03 Balanced performance Compensation for tilt, motion, and gravity.
04 Built for the sea Robust waterproof design.
05 Intuitive control Easy-to-use touchscreen interface developed for the fishing industry.
06 Traceable transparency Traceable fishing with weighing, batching, and labeling.
07 Connected efficiency Connectivity to network and web for real-time reporting.

Specifications

Platform material

AISI 316 stainless steel
Protection class

IP69K
Display

10.1″ LCD touchscreen
Indicator dimensions

W 342 mm, H 194 mm, D 72 mm
Material

Marine plastic
Protection class

IP67
Approvals

OIML & MID
Temperature range

-10ºC – 40ºC/14ºF – 104ºF
Power options

110-230 VAC 50/60 Hz/12-24V DC
Communication

Ethernet, CANopen, RS-232, RS-485, USB
Remote Controller

15 buttons wired remote controller

Options

Label printers and report programs are available as options.
Signals for automatic infeed.

About the u4000 Conveyor scale

Specifically designed for use in onboard fish processing lines at factory trawlers and on conveyor belts, this marine scale is built to deliver accurate and reliable weighing in demanding marine environments.

The system is type-approved, and compensates for tilt, motion, and gravity, supporting precise weighing in rough seas. Size, capacity, and resolution can be tailored to both conveyor design and customer needs.

The u4000 hopper scale comprises load cells, a compensation unit, and a u4000 weighing indicator. All our marine scales offer high accuracy, rapid weighing, and a durable design in stainless steel AISI 316.

The u4000 indicator can be equipped with the uFish application, an interface supporting various weighing functions. The system can be used to weigh a continuous product flow into batches for packing and other purposes.

The uFish interface is easy to use and operated via a touchscreen or remote controller, displaying selected weighing operations.

Net / Gross / Tare Auto tare Tare weights record Auto summation Optimal target weighing Counter mode Reverse weighing Weighing with target weight and filling indication
