Precision weighing, customised for the sea

The u4000 Custom-made 4-cell scales offer unlimited opportunities for weighing in marine applications, delivering precise and dependable performance, even under severe maritime conditions. This specialised scale accommodates configurations of up to four platforms, each customised to meet unique design and operational needs.

Designed to withstand the rigours of the marine environment, the u4000 scales boast a robust and waterproof construction.

Key benefits

01 Tailored precision Customised 4-cell scales.
02 Unwavering stability Resistant to vibrations and electrical disturbances.
03 Balanced performance Compensation for tilt, motion, and gravity.
04 Built for the sea Robust waterproof design.
05 Intuitive control Easy-to-use touchscreen interface developed for the fishing industry.
06 Traceable transparency Traceable fishing with weighing, batching, and labeling.
07 Connected efficiency Connectivity to network and web for real-time reporting.

Specifications

Platform material

AISI 316 stainless steel
Protection class

IP69K

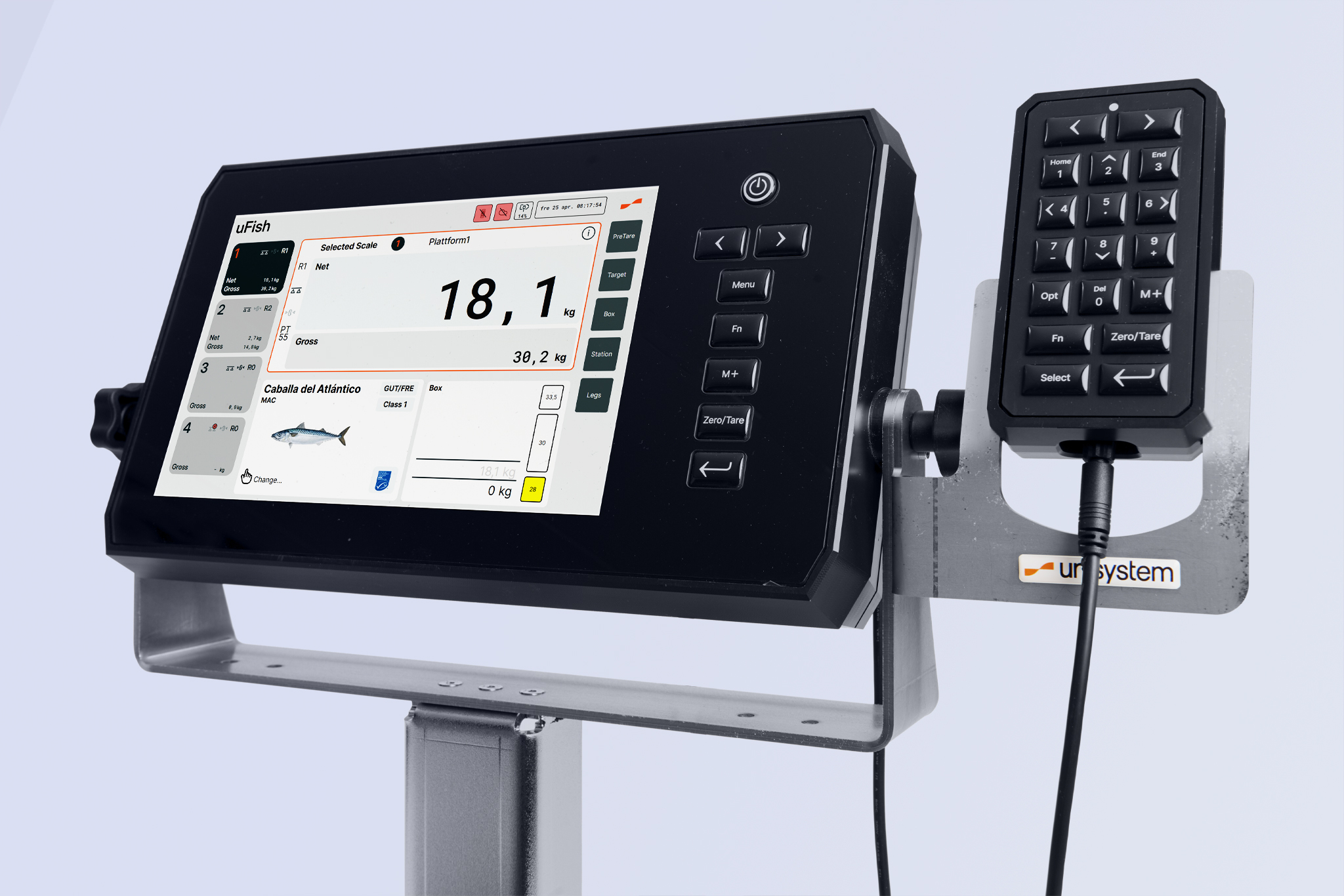

Display

10.1″ LCD touchscreen
Indicator dimensions

W 342 mm, H 194 mm, D 72 mm
Material

Marine plastic
Protection class

IP67
Approvals

OIML & MID
Capacity

Up to XXXX kg
Accuracy

Multi-interval
X kg up to Y kg max load
X kg up to YYY kg load
Temperature range

-10ºC – 40ºC/14ºF – 104ºF
Power options

110-230 VAC 50/60 Hz/12-24V DC
Communication

Ethernet, CANopen RS-232, USB
Options

Label printers and report programs are available as options.
Signals for automatic infeed.

About the u4000 Custom made 4-cell scales

The u4000 Custom made 4-cell scale is a 4-cell built-in weighing system designed for onboard operations in marine applications. The system is type-approved and compensates for tilt, motion, and gravity, supporting accurate weighing in rough seas. Size, capacity, and resolution can be adapted to any application design and customer need.

The u4000 Custom made 4-cell scale comprises a U-shaped load carrier, load cells, a compensation unit, and a u4000 weighing indicator. All our marine scales offer high accuracy, fast weighing, and durable design in stainless steel AISI 316.

The system can be used to weigh a continuous product flow into batches for packing and other purposes. The interface is easy to use and operated on a touchscreen, displaying selected weighing operations.

Net / Gross / Tare Auto tare Tare weights record Auto summation Optimal target weighing Counter mode Reverse weighing Weighing with target weight and filling indication
