Streamline your weighing at sea

The U4000 Marine scale revolutionizes marine weighing with fast and reliable performance, even in harsh weather conditions. This scale supports up to four platforms in selected dimensions, and is enhanced by the U-fish application, enabling varied, precise weighings such as single, basket, and box, all with advanced grading and labeling.

Engineered for durability, the U4000 integrates seamlessly with U-bridge and optional U-cloud software, facilitating legal-for-trade operations and ensuring robust, traceable, and efficient marine operations.

Key benefits

01 Certified precision Legal-for-trade catch weighing at sea.
02 Dynamic accuracy Fast and accurate motion-compensated scales for onboard use.
03 Built to endure Robust and waterproof design, resistant to vibrations and electrical disturbances.
04 Intuitive control Easy-to-use touchscreen interface developed for the fishing industry.
05 Flexible solution One or up to four platforms in selected dimensions.
06 Traceable transparency Traceable fishing with weighing, batching, and labeling.
07 Connected efficiency Connectivity to network and web for real-time reporting.

Specifications

Specifications indicator

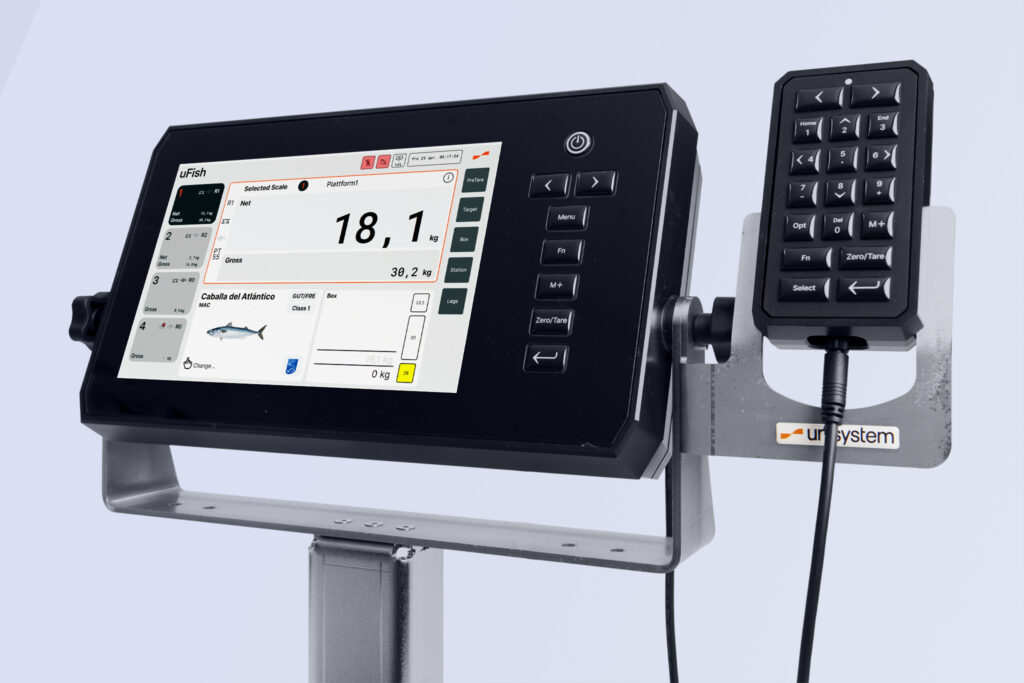

Display

10,1″ LCD touchscreen

Indicator dimensions

W 342 mm, H 194 mm, D 72 mm
Material

Marine plastic
Protection class

IP67
Approvals

OIML & MID
Temperature range

-10ºC – 40ºC/14ºF – 104ºF
Power options

110-230 VAC 50/60 Hz/12-24V DC
Communication

Ethernet, CANopen RS-232, RS-485, USB
Remote Controller

15 buttons wired remote controller

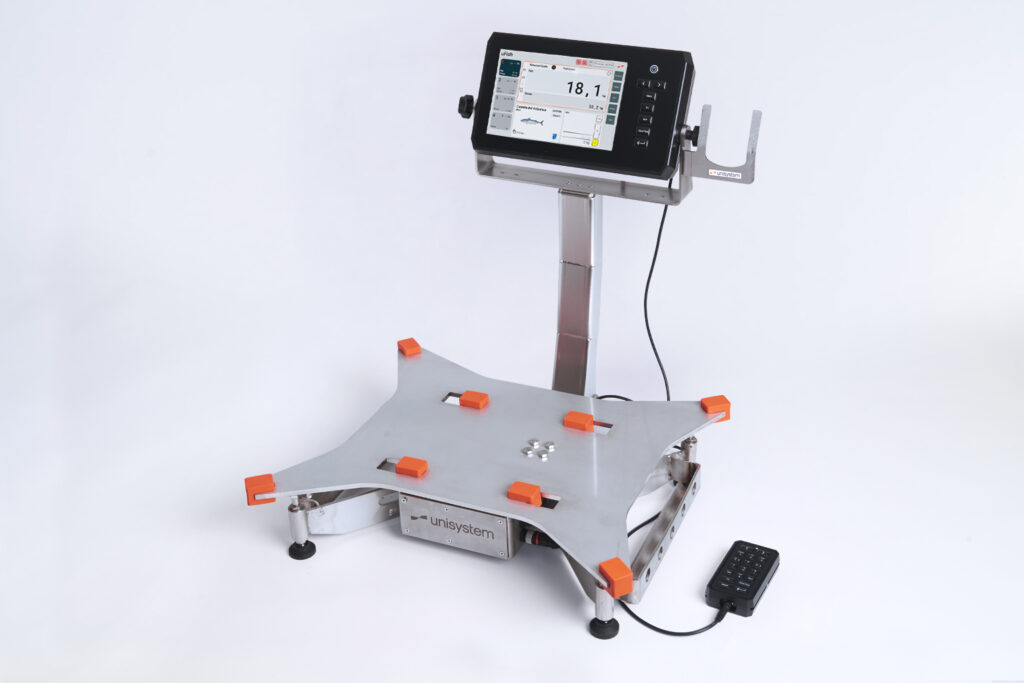

Bench scale platforms

250 x 250 mm
420 x 350 mm
600 x 500 mm
Platform material

AISI 316 stainless steel
Protection class

IP69K
Accuracy

Multi-interval
1 gram up to 3 kg max load
200 gram up to 150 kg load

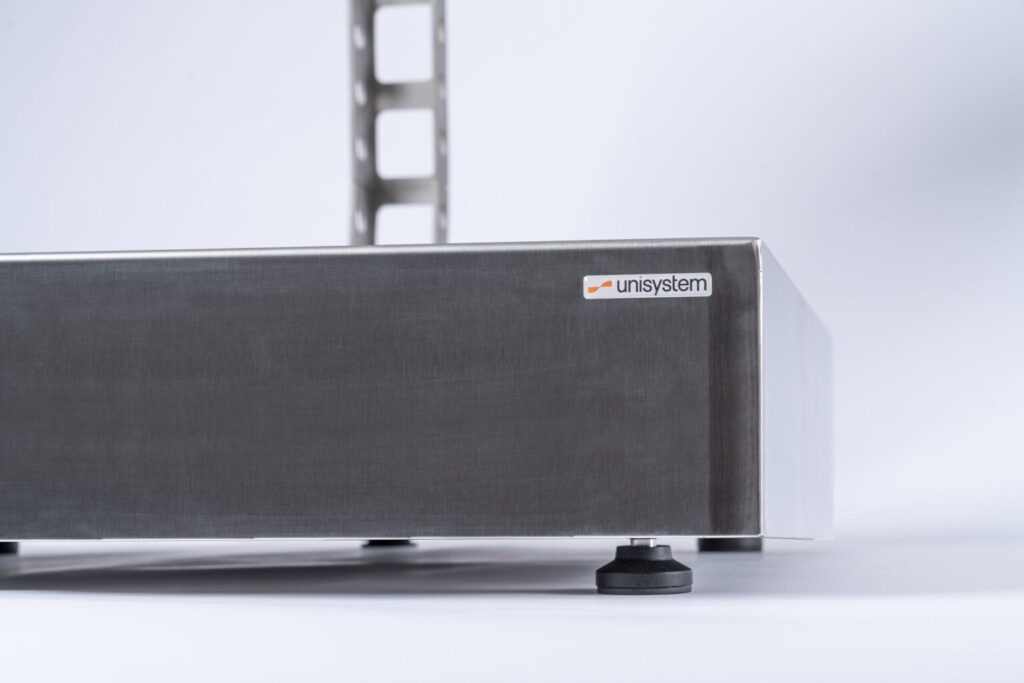

Floor scale platforms

The floor scale is a reliable, robust, and hygienic weighing platform for wet conditions. It is available as a large quadratic platform or a U-shaped platform for EU-pallets.

Quadratic design

1000 x 1000 mm
1500 x 1500 mm
Pallet

1250 x 840 mm
We also offer custom dimensions up to LLL x WWW mm
Platform material

AISI 316 stainless steel
Protection class

IP69K
Accuracy

Multi-interval
X kg to YYY kg load
X kg to YYY kg load

About the U4000 Marine scale

The U4000 indicator can be equipped with the uFish application, supporting single weighing, basket weighing, and box weighing, all with grading options and labeling.

Grading is simplified with selections for quality, size, species, and location. In addition to being printed on custom-designed labels, all data can easily be communicated through a network connection and integrated into the uBridge software for reporting or communication with any third-party software. The optional add-on, uCloud web portal, also enables online reporting to buyers and agencies.

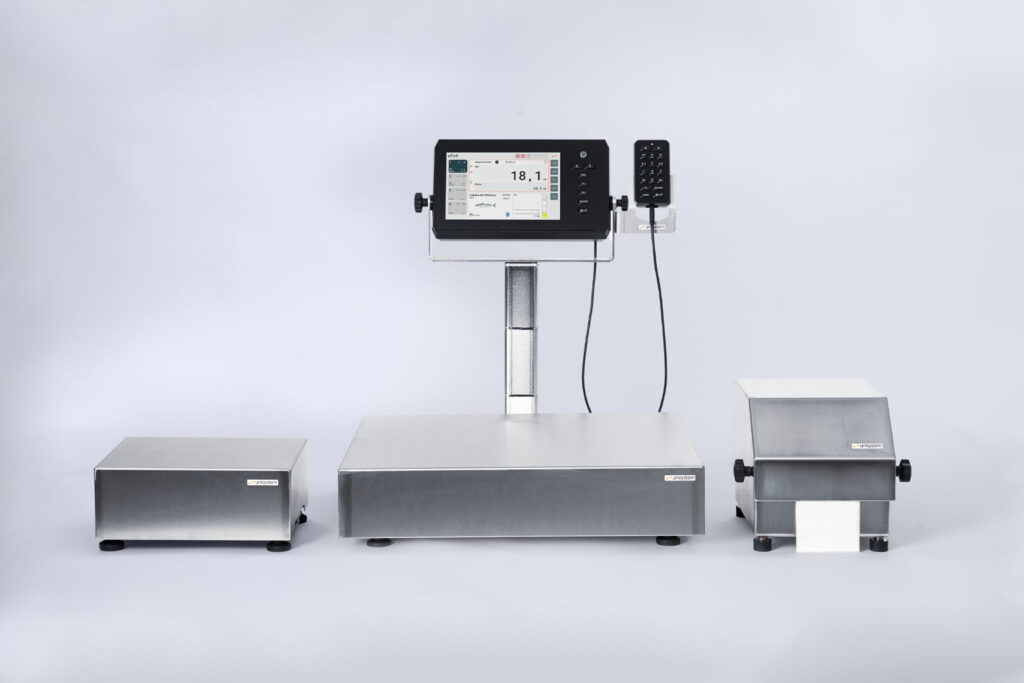

The U4000 is developed for both static and automatic weighing. One indicator can support one or up to four platforms and/or floor scales in selected sizes.. Weighing operations also include net, gross, tare-weighing, auto-tare, count, auto summation, and filling function.

An extended warranty, service, and support contract are offered, including remote support via internet connection and a chat function with supplier support.
